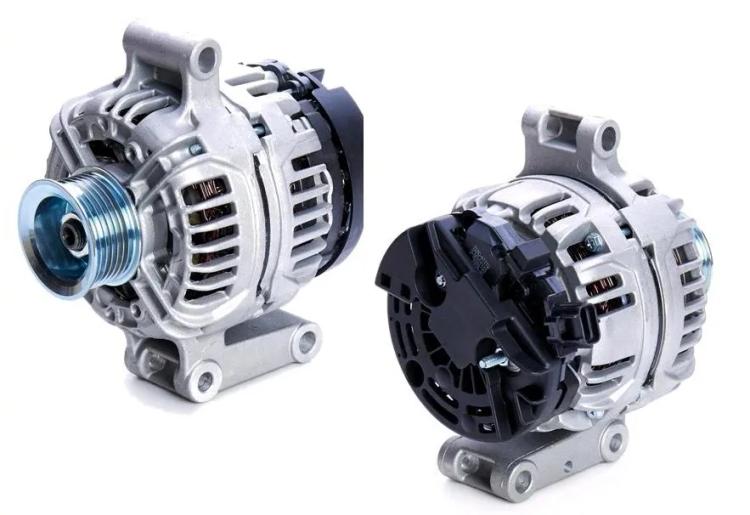

Alternator TT11249
Out of stock
Part numberTT11249
Voltage12 V
Amperage75 Amp
Size A39.5 mm
Size B55 mm
Size C74 mm
B+ diameterM6 mm
ConnectingL-DFM(FR)-S
Cross-references and components
TT11249
TT
0124315019
BOSCH
Components0124315027
BOSCH
ComponentsB120416351
BOSCH
Components2C3U10300BB
FORD
Components4069776
FORD
Components4098414
FORD
ComponentsApplication
Ford
Transit (FA_ _) 2000-01 - 2006-05 2.4 Diesel (D2FA, D2FB) 66kW /90HP
Transit (FA_ _) 2000-01 - 2006-05 2.4 Diesel (D4FA) 88kW /120HP
Transit (FA_ _) 2000-08 - 2003-08 2.4 Diesel (F4FA) 55kW /75HP
Transit (FA_ _) 2001-07 - 2006-05 2.4 Diesel (DOFA) 92kW /125HP
Transit (FA_ _) 2004-03 - 2006-05 2.4 Diesel (FXFA) 85kW /115HP
Transit (FA_ _) 2004-03 - 2006-05 2.4 Diesel (H9FA) 101kW /137HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2000-01 - 2006-05 2.4 Diesel (D4FA) 88kW /120HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2000-01 - 2006-05 2.4 Diesel (F4FA) 55kW /75HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2001-07 - 2006-05 2.4 Diesel (DOFA) 92kW /125HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2004-03 - 2006-05 2.4 Diesel (FXFA) 85kW /115HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2004-03 - 2006-05 2.4 Diesel (H9FA) 101kW /137HP
Transit (FM_ _, FN_ _) 2000-01 - 2006-05 2.4 Diesel (D2FA, D2FB, D2FE) 66kW /90HP
Transit (FM_ _, FN_ _) 2000-01 - 2006-05 2.4 Diesel (D4FA) 88kW /120HP
Transit (FM_ _, FN_ _) 2000-01 - 2006-05 2.4 Diesel (F4FA) 55kW /75HP
Transit (FM_ _, FN_ _) 2001-07 - 2006-05 2.4 Diesel (DOFA) 92kW /125HP
Transit (FM_ _, FN_ _) 2004-03 - 2006-05 2.4 Diesel (FXFA) 85kW /115HP
Transit (FM_ _, FN_ _) 2004-03 - 2006-05 2.4 Diesel (H9FA) 101kW /137HP
